LMR-14

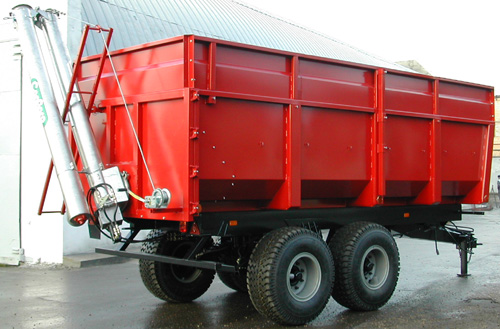

The tractor-hauled tip semitrailer LMR-14, lifting capacity is 14 ton. Machine could be equiped with grain loader. Having a grain loader and a weighing system this machine becomes an excellent tool for grain transportation.
Specifications
| Load-carrying capacity (ton) | 14 |
| Body capacity (cubic m) | 14.8 |
| Body capacity with exstension body sides(cubic m) | 20.5/25 |
| Mass (kg) | 4300 |
| Maximum speed (km/h) | 30 |
| Overall dimensions, (mm): | |
| length | 6930 |
| width | 2550 |
| height with main body sides | 2635 |
| height with exstension body sides | 3120 |
| height with two exstension body sides | 3620 |
| Inner dimensions of body, (mm): | |
| length | 5380 |
| width | 2150/2250 |
| height with main body sides | 1206 |
| height with exstension body sides | 1690 |
| height with two exstension body sides | 2170 |
| Body lifting angle (deg) | 50 |
| Number of cylinders | 1 |
| Oil volume needed | 27 |
| Wheel suspension | balancer |
| Tyre size | 16.5/70-18PR14; 550/45-22.5; 600/50-22.5; 400R22.5 |
| Track (mm) | 1950 |
| Brakes | 350×60 |
| Brakes drive | hydraulic |
| Drawbar | With rubber shock absorber |
| Drawbar support | jack with adjustable height |
| To be attached to tractors with power (kW) | 100-120 |
The presented assortment of equipment and accessories is for informational purposes only and is subject to change without notice.
